BASALTE
0202-22

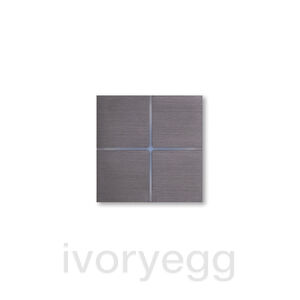

Sentido front - quad - brushed volcanic grey
Product code:
0202-22
Finishes:
Sentido is a touch-sensitive switch that is divided into four equal surfaces, each with its own functionalities. The entire surface is touch sensitive, creating an innovative and unique user experience. It also has an internal temperature sensor, along with integrated thermostat logic to discretely control the heating and air-conditioning of the room.
Description
The separate touch-sensitive surfaces of Sentido each control various functions, such as switching, dimming, operating blinds, calling up and or saving scenes, using both short and long press. By touching more than one surface at the same time, additional comfort functions can be activated including room toggle, scene sequencer and RGB sequencer.
The multicolour LED backlight provides status feedback and can be used as nightlight. Sentido also has a built-in temperature sensor and integrated thermostat logic.
A scene controller can control up to 6 scenes and 8 outputs per scene.
Technical Details
Specification
- 4 single touch surfaces
- 1 multi-touch functionality
- Integrated scene sequencer and RGB sequencer
- Multicolour LED backlight
- Temperature sensor with integrated thermostat logic
- Bus Coupler 200-02 for KNX is required
Properties
Properties
| Technology | KNX |
| Design range | BASALTE Aluminium |
| Finish | Grey |
| Switch action | Capacitive Touch |
| Mounting | Flush |
| Back Box | Round European |
| Buttons | 5 |
| HVAC support | Temperature Sensing + Regulation |
| Status LED's | RGB value |
| Buscoupler | Not Included |
| IP rating | IP20 |
| Operating Voltage | KNX Bus (29VDC) |
