THEBEN
theMura P180 2.20 KNX UP WH

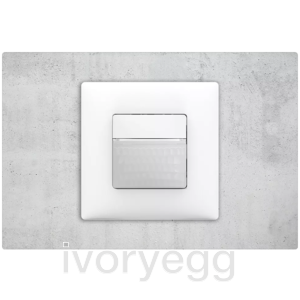

theMura P180 2.20m KNX Passive infrared presence detector, white
Product code:
2069658
Passive infrared presence detector for wall mounting flush-mounted
Description
- Passive infrared presence detector for wall mounting flush-mounted
- Rectangular detection area 170°, 16 x 10 m (160 m2) at 2.2 m mounting height
- 2 channels light and 2 channels HVAC
- Switching or constant light control with stand-by functionality (orientation light)
- Dimmable lighting in switching mode with and without daylight influence
- Simple adjustment of brightness measurement
- Short-time presence
- Selectable control speed
- Aura function
- Scene functionality
Technical Details
Specification
Measuring range brightness: 5 - 3000 lx
Installation type: Wall installation
Light switch-off delay: 30 s - 60 min
Light measurement: Mixed light measurement
Presence switch-off delay: 10 s - 120 min
Ambient temperature: -15°C ... 45°C
Colour: White
Type of protection: IP 20
Predecessor: 2009050, PresenceLight 180B-KNX WH
