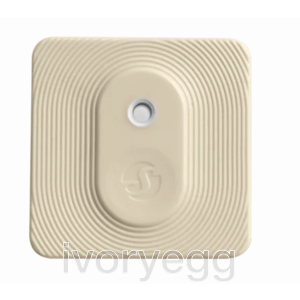

Shelly BLU H&T ZB Ivory
Product code:
BLUH&TZBIVORY
Shelly BLU H&T ZB is a smart humidity and temperature sensor. It has Zigbee and Bluetooth connectivity ensuring a secure connection with an extended battery life.
Description
*To use this device with the Shelly Smart Control app, a gateway is required. Compatible gateways include the Shelly BLU Gateway or any Shelly Plus, Pro, Gen3, or Gen4 device (excluding sensors). To use this device in a Zigbee network, a compatible Zigbee gateway is required.
Use cases
- Climate control: Adjust the heating, ventilation, and air conditioning system based on current temperature and humidity levels to maintain a comfortable indoor environment.
- Prevent mold and mildew: Monitor humidity levels to prevent the growth of mold and mildew in spaces like basements and bathrooms. The Shelly BLU H&T can activate ventilation or dehumidification devices when needed.
- Alerts and notifications: Receive alerts or notifications when the temperature or humidity reaches predefined thresholds and prevent issues like frozen pipes in cold weather or excessive moisture.
- Optimizing greenhouse conditions: Optimize conditions for greenhouse plants by adjusting watering systems and ventilation based on humidity and temperature levels.
- Security enhancement: Increase your home protection by detecting unusual temperature changes that might indicate fire or flood.
- Appliance control: Adjust operation of dehumidifiers, humidifiers, and fans based on the current temperature and humidity conditions.
Connectivity
- Bluetooth
- Zigbee
User interface
Inputs
- One push button
- One press: Sends the currently measured ambient temperature in °C, relative humidity in %, and a button-pressed event.
- Four quick presses or 10-second press: Initiates pairing with another Bluetooth device.
- Five quick presses: Activates Zigbee pairing.
- A 30-second press: Performs a factory reset (possible only shortly after inserting the battery).
Outputs
- One single-color (red) LED
- One flash: The Device sends the current ambient temperature, humidity, and button-pressed event.
- One flash every 2 seconds for 1 minute: The Device enters Bluetooth pairing mode for 1 minute.
- Two flashes every 2 seconds for 1 minute: The Device enters Zigbee pairing mode for 1 minute.
- One long flash: The Device performs a factory reset.
