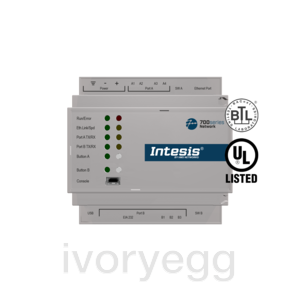

BACnet IP & MS/TP Client to Modbus TCP & RTU Server Application - 600 points

INTESIS IN7004856000000

BACnet IP & MS/TP Client to Modbus TCP & RTU Server Application - 600 points

Product code: IN7004856000000

Integrate any BACnet MS/TP or BACnet IP server device, with a Modbus BMS or any Modbus TCP or Modbus RTU controller. The aim of this integration is to make accessible BACnet objects data and resources from a Modbus based control system or device, as if it was a part of the own Modbus system and vice-versa.

Description

Features

UL Certified
BTL Certified
Support for up to 5 simultaneous Modbus TCP Clients
Both Modbus RTU & Modbus TCP
Both BACnet IP and MS/TP supported
Possibility to scan for BACnet devices with BACnet Explorer
Easy integration & updates with Intesis MAPS

This bidirectional gateway provides a straightforward and fast integration thanks to its unique onboard features.

Thanks to its support for both Modbus RTU and TCP, with the possibility to work together at the same time, a seamless integration with any Modbus BMS or controller it is guaranteed.

The configuration is carried out using the Intesis MAPS software. This one allows you to define your own settings for the device. Also, it will be able to download all the available project templates or to import any created/exported project template on your computer.
