INTESIS
INKNXUNI001I200

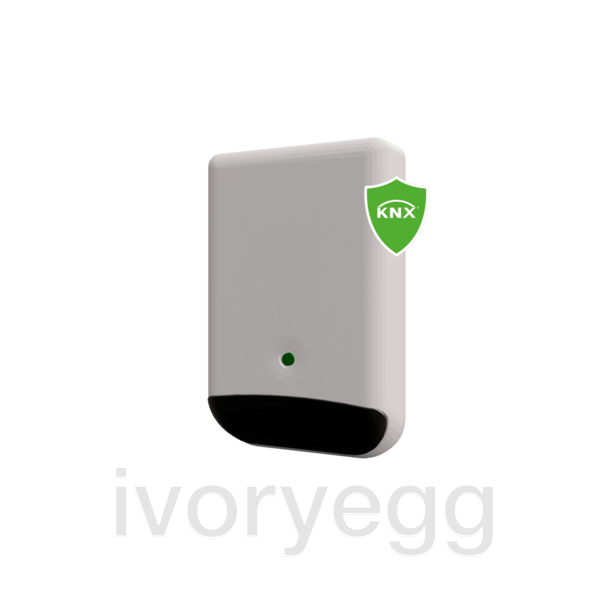

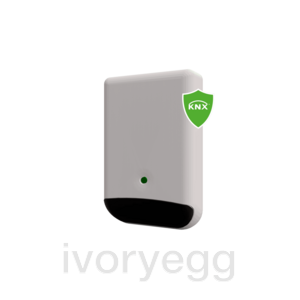

Universal IR Air Conditioner gateway to KNX Secure - 1 indoor unit
Product code:
INKNXUNI001I200
The Universal IR Air Conditioner gateway enables total integration of any air conditioner unit with an IR receiver into KNX data secure systems. Thanks to the device's capability of emitting and receiving infrared signals, the AC unit can be controlled simultaneously by KNX and the IR remote.
Description
KNX Data Secure certified gateway
Provides KNX encrypted communication and compliance with European cybersecurity standards.Universal IR compatibility and bidirectional communication
IR emitters and receivers enable both control and feedback from the AC unit via KNX, improving reliability and system insight.Automatic IR remote configuration via auto-learn
Simplifies commissioning by learning IR codes directly from the original remote control.ETS + DCA Configuration
Ensures fast, standard-compliant setup with familiar tools for KNX professionals.Integrated room temperature sensor
Allows environmental control without external KNX sensors.Two binary inputs: Multiple energy efficiency functions
Expands automation capabilities with support for occupancy sensors, window contacts, or any digital input to reduce the AC energy waste.Maximize comfort with scene control
Supports pre-configured comfort or energy-saving modes for flexible automation.Optimized for retail and hospitality projects
Enables reliable and secure AC control across multi-room or multi-zone environments, supporting all required DPT objects for compatibility with any KNX thermostat on the market.
Technical Details
Specification
Mounting: Wall mount
Input Voltage (V): 29 VDC
Power Connector: 2-pole
Operating Temperature °C Min: 0 °C
Operating Temperature °C Max: 60 °C
Housing Materials: Plastic
Packaging Material: Cardboard
Warranty (years): 3 years
AC Model Compatibility: Compatible with any air conditioner unit equipped with an infrared port.
Capacity: 1 Indoor unit.
Installation Conditions: Install this gateway indoors, in a restricted access location, avoiding exposure to direct solar radiation, water, high relative humidity, or dust.
Configuration: ETS with Dedicated Configuration App (DCA), Auto learn from original remote, or manual code selection
Properties
Properties
| Technology | KNX |
| Mounting | Surface |
| IP rating | IP20 |
| Operating Voltage | KNX Bus (29VDC) |
