KSENIA
KSI2500000.300
divide BUS Isolator/Repeater module
Product code:
KSI2500000.300
divide BUS Isolator/Repeater module. Complete with 4 mounting sustainers. Certifications: EN50131 Grade 3- class II, T031:2014.
Description

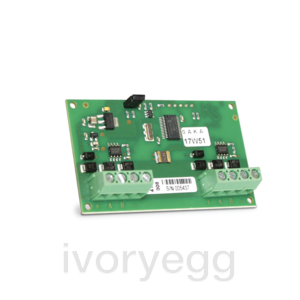

divide BUS Isolator & Repeater is a separation board for the KS-BUS. divide allows you to separate the KS-BUS in order to:
• dissect a part of the system so that any failure or sabotage of devices will not generate disservice on the whole network;
• boost the signal on the BUS; this amplification allows to increase the extension of the BUS for a further 500 m.
Given the nature of the device no programming is necessary: the central and remote devices continue on the BUS to “detect” the other in a transparent manner.
Technical Details
Specification
• Power Supply: 13,8Vdc
• Consumption: 20mA
• 2 x 4-wire KS-BUS terminals
• Board Dimension: 45×75 x16 mm
Properties
Properties
| Technology | Security |
