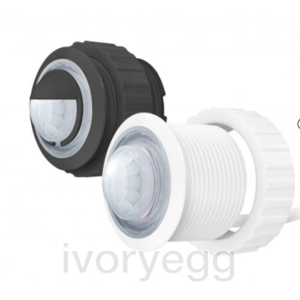

DALI-2 CS Mini Integration IP65 Presence 2.5m with thread and screwnut
Compact DALI-2 sensor module for Integration in systems with central control units sensor for motion detection (PIR) & light intensity
Description
In addition to the standard detection in the outer area, DALI-2 CS Mini Integration has a more sensitive inner detection area for the detection of minor movements.
The module gathers measurements for a building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.).
The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Mini Integration can be set accordingly in the DALI Cockpit Software.
Multiple sensors within one group will synchronise automatically.
The device is powered directly by the DALI bus.
Technical Details
Specification
- Sensor Module for DALI and DALI-2 lighting systems
- Movement detection (PIR) instance type 2 (62386-303) and light intensity measurement instance type 3 (62386- 304)
- 4 operating modes:
- Movement triggered
- Movement triggered with constant light control
- Constant light control
- Light control (4 thresholds)
- Operating modes can be changed via scenes and external DALI commands
- Corridor function – second light level before off in case of absence
- Light threshold-controlled regulation for the control of blinds or roller blinds
- The module can be used as a DALI light controller or just as sensor unit for integration in building management systems
- Easy configuration via DALI-Cockpit Software Tool and Lunatone DALI USB interface.
- Multiple sensor modules can be installed within a DALI system.
- Automatic synchronisation of multiple DALI-2 CS modules with the same effective range
- Supply via the DALI bus, no additional power supply needed
- Double terminals for easy installation
- Suitable for installation in luminaries
- Version for indoor and outdoor use IP65
Properties
Properties
| Technology | DALI |
