LUNATONE
88793325-INT-IP65

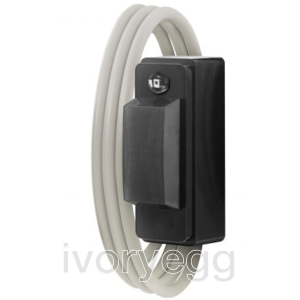

DALI-2 Compact Integration Sensor Module Corridor, black, IP65
Product code:
88793325-INT-IP65
Compact DALI-2 sensor module for Integration in systems with central control units
sensor for motion detection (PIR) & light intensity
Due to the horizontal detection angle (150 °), the sensor is particularly suitable for wall mounting, e.g. in corridors.
Description
The module gathers measurements for a building management system (instance mode) – (DALI-2 CS Master, WAGO, Beckhoff, etc.).
The measured values can either be queried or they can automatically trigger events. This functionality is implemented via DALI-2 instances. The DALI-2 CS Corridor Integration can be set accordingly in the DALI Cockpit Software.
Multiple sensors can be used within one system.
The device is powered directly by the DALI bus.
Technical Details
Properties
Properties
| Technology | DALI |
| Finish | Black |
| IP rating | IP65 |
