MDT
BE-GT2TS.02S

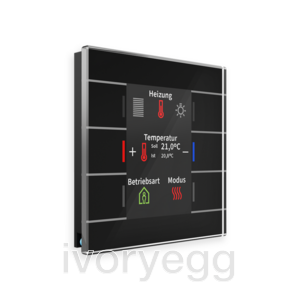

Glass KNX Push Button II Smart with temperature sensor, Black
Product code:
BE-GT2TS.02S
The Glass Push-button II Smart with temperature sensor offers additional functions to set temperature and operation mode. In combination with the MDT Heating Actuator an efficient room temperature regulation can be configured and vizualized. Furthermore user defined 1 Bit messages and 14 Byte text telegrams can be indicated.
Description
- With 6 sensor areas, colored display and RGB status indicator
- Suitable as 4/6/8/12-fold push button. Integrated BCU
- The buttons can be adjusted for 1 or 2 button operation
- Up to 12 functions on 2 or 3 levels (2x6 or 3x4 functions)
- Up to 6 functions without level switching
- Large, colored active display to indicate function and status
- Symbols and plain text adjustable for each button/function
- With temperature sensor to measure room temperature
- Additional functions to set temperature and operating mode
- Indication of individal messages/text telegrams (1Bit/14Byte)
- Application as RTC in combination with AKH heating actuator
- 1 or 2 button operation for switching, dimming, shutters, values
- Short/long button push with 2 objects
- RGB status for each button separate controlable from each level
- Indication of inside/outside temperature and time
- Automatic display brightness via light sensor and day/night object
- Slap function with additional switch channel
- Recommended mounting height: 1,50 - 1,60m (as operating device)
- Installation in socket, Dimensions (W x H): 92mm x 92mm
- No additional power supply required
- Integrated bus coupling unit, 3 years warranty
Technical Details
Properties
Properties
| Technology | KNX |
| Finish | Black |
| Gangs | 6 |
