MDT
SCN-DTSEN1.01

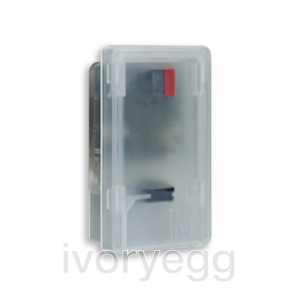

KNX Twilight sensor / temperature sensor
Product code:
SCN-DTSEN1.01
Twilight sensor / temperature sensor KNX for detection and evaluation of outdoor brightness and outdoor temperature with integrated bus coupler.
Description
- Light sensor to register twilight and brightness
- Temperature sensor to measure the outside temperature
- Two threshold values can be set for each measured value
- Adjustable switch on- / off time delay per threshold value
- Day- / night function object. Twilight value range 0 - 1000 Lux
- Temperature range -20 °C to +55 °C
- Protection classification: IP 44
- Dimensions: 50 mm x 77 mm x 21 mm (W x H x D)
Technical Details
Properties
Properties
| Technology | KNX |
