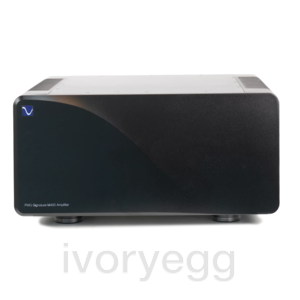

PMG Signature Power Amplifier Mono 400 watts (Pair) - Black
Description
- 200 watts into 8Ω, doubling to 400 watts into 4Ω
- 30W Class A bias
- Slew Rate > 200V/uS
- Bandwidth exceeding 500 kHz
- Strikingly low overall feedback architecture
- State-of-the-art active power supply
- Designed by Darren Myers
- Engineered by Bob Stadtherr
Technical Details
Specification
Unit Weight: 55.8 lbs / 25.3 kg
Unit Dimensions: 16 in L × 17.5 in W × 8 in H (406.4 × 444.5 × 203.2 mm) With feet & binding posts: 16.75 in L × 17.5 in W × 8.75 in H
Shipping Weight: 68 lbs (2 units)
Shipping Dimensions: 23.5 × 23 × 15 in / 596.9 × 584.2 × 381 mm (2 units)
Input Power: Auto Voltage: 120VAC or 230VAC, 50 or 60 Hz
Power Consumption: Standby (Ready): <2W | Idle: 220W | 50W/4Ω: 320W
Fuses: No user serviceable fuses
Audio Inputs: RCA (Single-ended): 1 pair | XLR (Balanced): 1 pair
Speaker Outputs: Silver Plated Binding Posts: 4 pair
Trigger: Input: 3.5mm, 5–15VDC | Output: 3.5mm, 12VDC
Gain: 26.2 dB
Sensitivity: 2.0V
Power Output: 200W into 8Ω, 400W into 4Ω (1kHz, <1% THD)
Class A Power Output: 30W into 8Ω
Frequency Response: <10Hz – 80kHz (±0.25dB)
Input Impedance: 100kΩ Single-ended | 200kΩ Balanced
Bandwidth: >500kHz
THD: <0.002% typical (20Hz–20kHz, 1W/8Ω)
Damping Factor: >300 at 8Ω (20Hz–1kHz)
Properties
Properties
| Technology | AV |
| Finish | Black |
