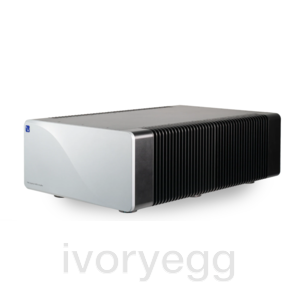

PMG Signature Power Amplifier Mono 800 watts (Pair) - Silver
Description
- 400 watts into 8Ω, doubling to 800 watts into 4Ω
- 50W Class A bias — 99% of typical listening in pure Class A
- Slew Rate >200V/uS
- Bandwidth exceeding 500 kHz
- Flat distortion across the audible band with strikingly low overall feedback
- State-of-the-art active power supply
- Balanced (XLR) and single-ended (RCA) inputs
- Available in Silver or Black
- Hand built in Boulder, Colorado
Technical Details
Specification
Unit Weight: 95.7 lbs / 43.4 kg
Unit Dimensions: 26.75 in L × 17.5 in W × 8 in H (679.5 × 444.5 × 203.2 mm) With feet & binding posts: 27.5 in L × 17.5 in W × 8.75 in H
Shipping Weight: 119.2 lbs / 54.1 kg (2 units)
Shipping Dimensions: 34.4 × 23.1 × 14.9 in / 873.8 × 586.7 × 378.5 mm (2 units)
Input Power: Auto Voltage: 120VAC or 230VAC, 50 or 60 Hz
Power Consumption: Standby (Ready): <2W | Idle: 360W | 25W/4Ω: 520W
Fuses: No user serviceable fuses
Audio Inputs: RCA (Single-ended): 1 pair | XLR (Balanced): 1 pair
Speaker Outputs: Silver Plated Binding Posts: 4 pair
Trigger: Input: 3.5mm, 5–15VDC | Output: 3.5mm, 12VDC
Gain: 26.2 dB
Sensitivity: 2.8V
Power Output: 400W into 8Ω, 800W into 4Ω, 1200W into 2Ω (1kHz, <1% THD)
Class A Power Output: 60W into 8Ω
Frequency Response: <10Hz – 80kHz (±0.25dB)
Input Impedance: 100kΩ Single-ended | 200kΩ Balanced
Bandwidth: >500kHz
THD: <0.002% typical (20Hz–20kHz, 1W/8Ω)
Damping Factor: >300 at 8Ω (20Hz–1kHz)
