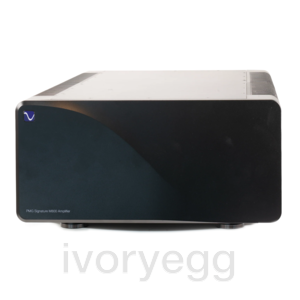

PMG Signature Power Amplifier Mono 800 watts (Pair) - Black
PS AUDIO PMG M800B

PMG Signature Power Amplifier Mono 800 watts (Pair) - Black

Product code: PMG M800B
The flagship of the PMG Signature Series. The best power amplifier PS Audio has ever built — period. PS Audio has been designing and building amplifiers for half a century. Every one has been a step toward sonic perfection — each teaching us something the last could not: about power supplies, about feedback, about the quiet ways an amplifier can color the music it carries. The M800 is where that road arrives. Eight hundred watts into 4 ohms, doubling cleanly down from 400 into 8 — decisive, effortless, never strained. But power was never the hard part. Speed, evenness, and restraint were. The M800 is the first amplifier we've built to hold all three at once. Its slew rate exceeds 200 volts per microsecond. Hand it a 10 kHz square wave — the cruelest signal in audio — and it returns vertical edges and flat tops, no overshoot, no ringing. In fifty years we have never seen one this perfect. Distortion stays flat and low across the entire audible band, never trading one frequency for another. And it does all of this with strikingly low overall feedback — no heavy correction, just the music. Remarkable. Designed by Darren Myers. Engineered by Bob Stadtherr. Hand-built in Boulder, Colorado.
Price (Excluding GST)
$P.O.A

Description

  • 400 watts into 8Ω, doubling to 800 watts into 4Ω
  • 50W Class A bias — 99% of typical listening in pure Class A
  • Slew Rate >200V/uS
  • Bandwidth exceeding 500 kHz
  • Flat distortion across the audible band with strikingly low overall feedback
  • State-of-the-art active power supply
  • Balanced (XLR) and single-ended (RCA) inputs
  • Available in Silver or Black
  • Hand built in Boulder, Colorado

Technical Details

Specification

Unit Weight: 95.7 lbs / 43.4 kg
Unit Dimensions: 26.75 in L × 17.5 in W × 8 in H (679.5 × 444.5 × 203.2 mm) With feet & binding posts: 27.5 in L × 17.5 in W × 8.75 in H
Shipping Weight: 119.2 lbs / 54.1 kg (2 units)
Shipping Dimensions: 34.4 × 23.1 × 14.9 in / 873.8 × 586.7 × 378.5 mm (2 units)
Input Power: Auto Voltage: 120VAC or 230VAC, 50 or 60 Hz
Power Consumption: Standby (Ready): <2W  |  Idle: 360W  |  25W/4Ω: 520W
Fuses: No user serviceable fuses
Audio Inputs: RCA (Single-ended): 1 pair  |  XLR (Balanced): 1 pair
Speaker Outputs: Silver Plated Binding Posts: 4 pair
Trigger: Input: 3.5mm, 5–15VDC  |  Output: 3.5mm, 12VDC
Gain: 26.2 dB
Sensitivity: 2.8V
Power Output: 400W into 8Ω, 800W into 4Ω, 1200W into 2Ω (1kHz, <1% THD)
Class A Power Output: 60W into 8Ω
Frequency Response: <10Hz – 80kHz (±0.25dB)
Input Impedance: 100kΩ Single-ended  |  200kΩ Balanced
Bandwidth: >500kHz
THD: <0.002% typical (20Hz–20kHz, 1W/8Ω)
Damping Factor: >300 at 8Ω (20Hz–1kHz)

Properties

Properties

Technology AV
Finish Black
