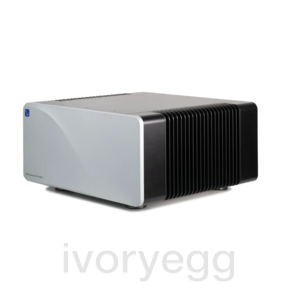

PMG Signature Power Amplifier Stereo 200 watts - Silver
PS AUDIO PMG S200S

PMG Signature Power Amplifier Stereo 200 watts - Silver

Product code: PMG S200S
Where the PMG Signature journey begins. The full Signature topology, scaled for real rooms and real systems. Every journey has a first step. In the PMG Signature Series, that step is the S200 — and it is a more serious one than its place in the lineup suggests. It would have been easy to build an entry-level amplifier and lend it the Signature name. We didn't. The S200 is the complete PMG Signature topology — Darren Myers's low-feedback design and the same state-of-the-art active power supply architecture found throughout the line — scaled, not stripped, for the rooms and systems where the M400's reserves would never be tapped. One hundred watts per channel into 8 ohms, doubling cleanly into 4. Ten watts of pure Class A bias per channel hold both channels in their most linear region through roughly twenty percent of typical listening. The same bandwidth beyond 500 kHz, the same 200-volt-per-microsecond slew rate, the same flawless square wave, the same flat distortion as its larger siblings. For the listener building a reference system step by step, this is where it begins. For many, it will be everything they ever need. Designed by Darren Myers. Engineered by Bob Stadtherr. Hand-built in Boulder, Colorado.
Price (Excluding GST)
$P.O.A

Description

  • 100 watts into 8Ω per channel, doubling to 200 watts into 4Ω per channel
  • 10W Class A bias per channel
  • Slew Rate >200V/uS
  • Bandwidth exceeding 500 kHz
  • Strikingly low overall feedback architecture
  • State-of-the-art active power supply
  • Designed by Darren Myers
  • Engineered by Bob Stadtherr

Technical Details

Specification

Unit Weight: 56.2 lbs / 25.5 kg
Unit Dimensions: 16 in L × 17.5 in W × 8 in H (406.4 × 444.5 × 203.2 mm) With feet & binding posts: 16.75 in L × 17.5 in W × 8.75 in H
Shipping Weight: 68 lbs
Shipping Dimensions: 23.5 × 23 × 15 in / 596.9 × 584.2 × 381 mm
Input Power: Auto Voltage: 120VAC or 230VAC, 50 or 60 Hz
Power Consumption: Standby (Ready): <2W  |  Idle: 180W  |  25W/4Ω: 360W
Fuses: No user serviceable fuses
Audio Inputs: RCA (Single-ended): 1 pair  |  XLR (Balanced): 1 pair
Speaker Outputs: Silver Plated Binding Posts: 4 pair
Trigger: Input: 3.5mm, 5–15VDC  |  Output: 3.5mm, 12VDC
Gain: 26.2 dB
Sensitivity: 1.4V
Power Output: 100W/ch into 8Ω, 200W/ch into 4Ω (1kHz, <1% THD)
Class A Power Output: 10W/ch into 8Ω
Frequency Response: <10Hz – 80kHz (±0.25dB)
Input Impedance: 100kΩ Single-ended  |  200kΩ Balanced
Bandwidth: >500kHz
THD: <0.002% typical (20Hz–20kHz, 1W/8Ω)
Damping Factor: >240 at 8Ω (20Hz–1kHz)
Crosstalk: >90dB at 1kHz

Properties

Properties

Technology AV
Finish Silver
