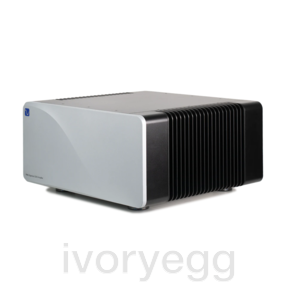

PMG Signature Power Amplifier Stereo 400 watts - silver
PS AUDIO PMG S400S

PMG Signature Power Amplifier Stereo 400 watts - silver

Product code: PMG S400S
The PMG Signature voice in a more accessible stereo chassis. Not every great system has room for two amplifiers. Two boxes, two power cords, two sets of cables — for many listeners that is one requisite too many. The S400 exists for them: the entire PMG Signature experience in a single chassis. What it is not is a compromise of sonics. This is the full Signature topology built in stereo form — two channels of 200 watts each into 8 ohms, doubling cleanly into 4, drawn from the same state-of-the-art active power supply architecture that drives the M400. The same strikingly low overall feedback. The same bandwidth beyond 500 kHz and slew rate past 200 volts per microsecond — the speed that returns a flawless 10 kHz square wave and lets every transient land exactly when the music intended. The same flat, low distortion across the audible band. Little in the topology was pared back. One box, one power cord, two channels of genuine reference amplification. Designed by Darren Myers. Engineered by Bob Stadtherr. Hand-built in Boulder, Colorado.
Price (Excluding GST)
$P.O.A

Description

  • 200 watts into 8Ω per channel, doubling to 400 watts into 4Ω per channel
  • 5W Class A bias per channel
  • Slew Rate > 200V/uS
  • Bandwidth exceeding 500 kHz
  • Strikingly low overall feedback architecture
  • State-of-the-art active power supply
  • Designed by Darren Myers
  • Engineered by Bob Stadtherr

Technical Details

Specification

Unit Weight: 57.2 lbs / 25.9 kg
Unit Dimensions: 16 in L × 17.5 in W × 8 in H (406.4 × 444.5 × 203.2 mm) With feet & binding posts: 16.75 in L × 17.5 in W × 8.75 in H
Shipping Weight: 68 lbs
Shipping Dimensions: 23.5 × 23 × 15 in / 596.9 × 584.2 × 381 mm
Input Power: Auto Voltage: 120VAC or 230VAC, 50 or 60 Hz
Power Consumption: Standby (Ready): <2W  |  Idle: 190W  |  50W/4Ω: 390W
Fuses: No user serviceable fuses
Audio Inputs: RCA (Single-ended): 1 pair  |  XLR (Balanced): 1 pair
Speaker Outputs: Silver Plated Binding Posts: 4 pair
Trigger: Input: 3.5mm, 5–15VDC  |  Output: 3.5mm, 12VDC
Gain: 26.2 dB
Sensitivity: 2.0V
Power Output: 200W/ch into 8Ω, 400W/ch into 4Ω (1kHz, <1% THD)
Class A Power Output: 5W/ch into 8Ω
Frequency Response: <10Hz – 80kHz (±0.25dB)
Input Impedance: 100kΩ Single-ended  |  200kΩ Balanced
Bandwidth: >500kHz
THD: <0.002% typical (20Hz–20kHz, 1W/8Ω)
Damping Factor: >240 at 8Ω (20Hz–1kHz)
Crosstalk: >90dB at 1kHz

Properties

Properties

Technology AV
Finish Silver
