PMG Signature 512 DAC
  • Screenshot 2025 05 19 at 10.16.54
  • Screenshot 2025 05 19 at 10.16.43
PS AUDIO PMGSDAC

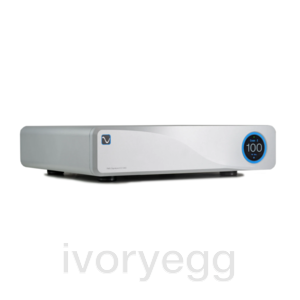

PMG Signature 512 DAC

Product code: PMGSDAC
Digital audio was born in 1982 with the launch of the first CD player, and PS Audio didn’t miss a beat—they introduced the world’s first high-performance standalone D-to-A converter and never looked back. Now, after decades of innovation, they unveil the PMG Signature 512 DAC. At its core is the PureStream DSD512 engine, converting any form of digital audio into a pure 8X DSD stream—no PCM, no decimation, no compromise. That stream feeds their SpectraWave 64-Tap Sequencer, lowering noise and distortion while perfectly time-aligning the signal. From there, it flows into a state-of-the-art, direct-coupled analog output stage. The result is breathtaking—fluid, natural, and as analog as it gets. With a built-in high-end streamer for seamless access to your music, the 512 is their best DAC ever. For the first time in PS Audio’s history, their founder’s name graces a DAC. Yes, it’s that good. And this time, it’s personal.
Price (Excluding GST)
$P.O.A

Description

  • Class A Balanced Analog Output Stage
  • Full Function DAC
  • Fixed or Variable DAC Mode
  • Analog Volume Control
  • Balanced Xlr Output
  • Digital Lens Technology
  • Purestream DSD 8X Engine
  • Spectrawave 64-Tap Sequencer
  • High-Current Oversized Analog Power Supply
  • Sinad Exceeding -100Db
  • No Transformer In Output Signal Path
  • Quad Rate DSD
  • DSD Direct Through I2S

Technical Details

Specification

Power requirements

Input Power: Auto Voltage: 120VAC or 230VAC 50 or 60Hz
Power Consumption: 25W

Digital audio inputs

Inputs: I2S (2), Coax (2), XLR Balanced (2), Optical, USB
Sample Rates:
Optical (TOSLink): PCM 16 and 24 bits at 44.1kHz, 48kHz, 88.2kHz and 96kHz
S/PDIF (Coax and XLR): PCM 16 and 24 bits at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz and 192kHz; DoP64
I2S:  PCM 16 and 24 bits at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 705.6; DoP64, DoP128, DoP256, DSD64, DSD128, and DSD256
USB:  PCM 16 and 24 bits at 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, and 705.6; DoP64, DoP128, DoP256, DSD64, DSD128, and DSD256.

Analog Audio Output

Connector: RCA single ended or balanced, XLR balanced
Output Level High, Maximum: 4 VRMS Balanced, 2 VRMS Single Ended
Output Impedance: 100Ω / 200Ω
Frequency Response: 20-20KHz +/- 0.25dB
THD+N @ 1KHz (full scale): < 0.002%
Output Stage: High-speed op-amp with discrete buffers.

Data Handling

Format: PCM or DSD
Sample Rate (PCM): 44.1kHz, 48.0kHz, 88.2kHz, 96.0kHz, 176.4kHz, 192kHz, 352.8kHz; 705.6kHz
Word Length (PCM): 16b, 18b, 20b, 24b
Data Rate (DSD): Standard (2.8MHz) or Double (5.6MHz) DoP as well as raw DSD on I2S and USB inputs
Analog Conversion method: DSD Ladder DAC at 5.6, 11.3 or 22.6MHz

I2S Digital Input

Connector: HDMI
Format: PCM or DSD. DoP on all inputs as well as raw DSD on I2S inputs

USB Digital Input

Connector: USB "B" Type
Format: PCM, DoP v1.1 (DSD over PCM), or Native DSD
Transfer Mode: Asynchronous

Properties

Properties

Technology AV
Finish Silver
