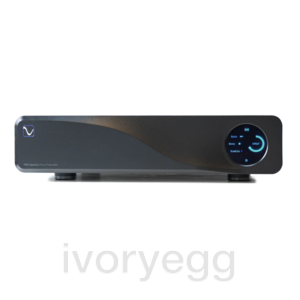

PMG Signature Phono Preamplifier Black
  • Screenshot 2025 08 04 at 16.04.47
  • Screenshot 2025 08 04 at 16.04.27
PS AUDIO PMGSPPAB

PMG Signature Phono Preamplifier Black

Product code: PMGSPPAB
The PMG Signature Phono Preamplifier is a groundbreaking leap into the future of analog playback—unlike anything any vinyl lover has ever heard. Designed from the ground up by PS Audio engineer Darren Myers, this revolutionary phono stage features a cutting-edge transimpedance input and a zero-feedback topology that strips away distortion, coloration, and noise, revealing the purest truth hidden in the grooves. It’s the first phono preamp in PS Audio's 50-year history to bear the name of their founder—because it had to be that good. With dual inputs for both moving coil and moving magnet cartridges, and remote-controlled loading and gain options, the PMG Signature adapts effortlessly to any system. Its fully discrete FET design delivers massive headroom, ultra-low noise, and explosive dynamics that bring your records to life in ways you’ve never imagined. This is not just a phono preamp—it’s a liberation of analog. Vinyl, like you’ve never heard it.
Price (Excluding GST)
$P.O.A

Description

  • Class A Balanced Analog Output Stage
  • Zero Feedback Folded Cascodes
  • Fixed And Variable Loading
  • Hybrid Design
  • Balanced Xlr Output
  • 70Db Ultra Low Noise Gain .15Mv Cartridges
  • 2X Inputs For 2X Tonearms
  • Transimpedance Input
  • High-Current Oversized Analog Power Supply
  • Discrete Fet Design
  • No Capacitors In Output Signal Path
  • Class 'A' Analog Circuitry
  • Diamond Buffers Throughout

Technical Details

Specification

Weight: 30 lbs / 13.6 kg
Dimensions: 14 3/4” x 17 1/2” x 4 3/8” (with feet). 375 mm x 445 mm x 112 mm (with feet)
Voltage Options (Factory set only): Auto Voltage: 120VAC or 230VAC 50 or 60Hz
Fuses: 120V: T250V-1.6AH (1.6A Slow Blow). 230V: T250V-1AH (1A Slow Blow)
Accessories Included: US (NEMA 5-15P) (100V/120V versions). Schuko (CEE7/7) (230V version). UK (BS1363) (230V version). Remote Control
Audio Inputs: MM or MC: XLR or RCA. TZ: XLR or RCA
Audio Outputs: RCA (Unbalanced) 1 Stereo Pair. XLR (Balanced) 1 Stereo Pair.
DC Trigger: Input: 3.5mm (2) 5-15VDC
Performance: All measurements are with both channels operating, gain set to low, and balanced outputs. Input frequency is 1kHz.
Input Loading: 47K, 1K, 470, 320, 200, 140, 100, 67, 40, 30, 16, 12

Properties

Properties

Technology AV
Finish Black
