BASALTE 0200-02 Sentido switch + 0202-08 Sentido front - quad - brushed brass
Description
Clearance Bundle Deal

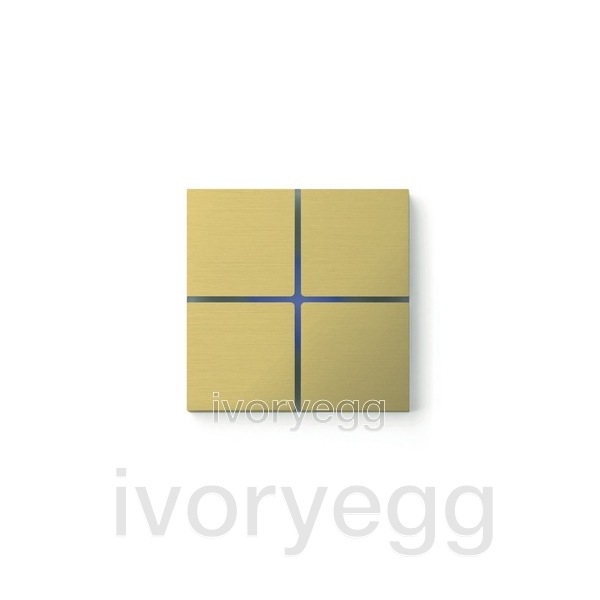

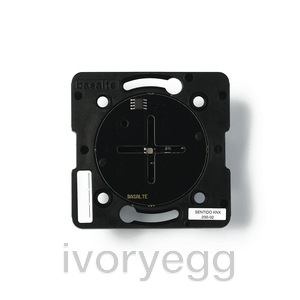

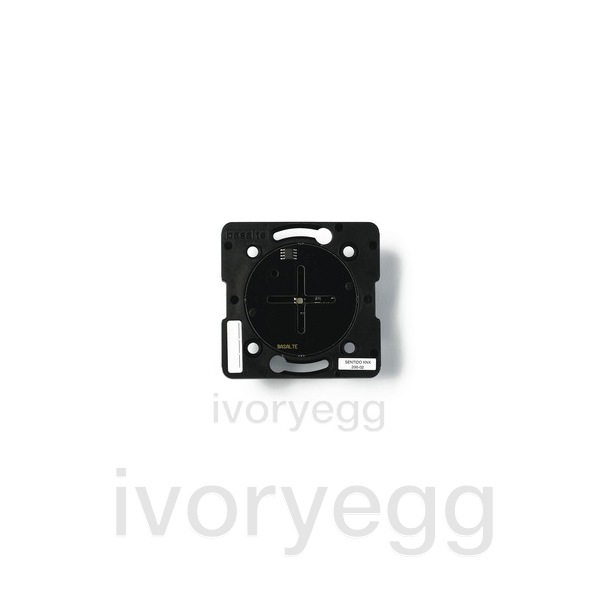

0200-02 Sentido switch - KNX/EIB (V3.1) + 0202-08 Sentido front - quad - brushed brass
The Sentido KNX has 4 touch sensitive areas. When touching one touch sensitive area, the led will become white. When touching more than one touch sensitive area simultaneously, which is called the multitouch, the led will become orange.
Each single touch sensitive area has a defined function:
- No action
- Edge
- Switching
- Dim
- Motor control
- Single press motor control
- Scene
- 1 byte value
- 2 byte value
- Shift register
- RGB value
- No action
- Edge
- Switching
- Shift register
- 1 byte value
- Motor control
- Single press motor control
- Room toggle
- Room toggle + single press motor control
- Room toggle + scene sequencer
- Room toggle + general on/off/scene
- RGB toggle + RGB sequencer
The separate touch-sensitive surfaces of Sentido each control various functions, such as switching, dimming, operating blinds, calling up and or saving scenes, using both short and long press. By touching more than one surface at the same time, additional comfort functions can be activated including room toggle, scene sequencer and RGB sequencer.
The multicolour LED backlight provides status feedback and can be used as nightlight. Sentido also has a built-in temperature sensor and integrated thermostat logic.
A scene controller can control up to 6 scenes and 8 outputs per scene.
Technical Details
Specification
- Bus Voltage: KNX Bus 21...32VDC
- Bus Current Consumption: 10mA
- Ambient temperature: -5 ... +45°C
- Connection mode KNX: Standard KNX/EIB connection terminals
In order to function properly, the sensors of the Sentido switch need to calibrate to the environment. This calibration starts when bus power is applied, when a cover is installed or can be forced when the sensors detect a touch for more than 40 seconds. During calibration the RGB led will light up blue and slowly fade up and down. Make sure not to touch the cover when the calibration process is ongoing! At the end of calibration the RGB led will blink green. The switch is now ready to be used.
- 4 single touch surfaces
- 1 multi-touch functionality
- Integrated scene sequencer and RGB sequencer
- Multicolour LED backlight
- Temperature sensor with integrated thermostat logic
- Bus Coupler 200-02 for KNX is required
