SHELLY
SH-PILLMUSB

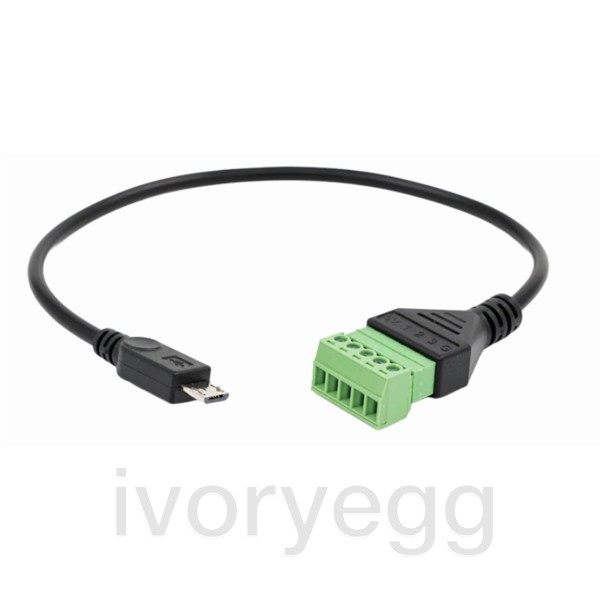

5-Terminal Add-on (Accessory for The Pill by Shelly)
Product code:
SH-PILLMUSB
Interface module for The Pill by Shelly providing power, ground, and three configurable I/O terminals. Perfect for connecting sensors, buttons, or other control elements in any setup.
Description
Versatile addon, exposing The Pill hardware capabilities. Providing terminals for 3 Input/Outputs (3.3V logic-levels) and 5V power with GND reference, the Add-on makes The Pill ready to use for logic-levels Digital Input / Digital outputs, Analog input (range 0-2.5V) or Temperature Sensors (DS18B20, DHT22).
Device electrical interfaces
Inputs
- 1 multi-purpose Input/Output: configurable for sensors (DS18B20, DHT22), Analog input (0-2.5 V) or Digital Input/Output - IO1
- 2 Digital Input/Outputs (logic-level 3.3 V) - IO2, IO3
Power
Optional Power terminals - 5V, GND
Add-on interface
Add-on Interface connector for The Pill by Shelly
Detailed inputs and outputs description
| Symbol | Description | Usage |
|---|---|---|
| 5V | 5V Power | Power output for connected sensors or 5V Power for The Pill |
| IO1 | Input/Output (logic-level 3.3V) | Configurable for: DS18B20, DHT22, Analog Input (0-2.5V), Digital Input or Digital Output |
| IO2 | Input/Output (logic-level 3.3V) | Configurable for: Digital Input or Digital Output |
| IO3 | Input/Output (logic-level 3.3V) | Configurable for: Digital Input or Digital Output |
| GND | Ground | Ground for reference for connected sensors or 0V for Power supply for The Pill |
Technical Details
Specification
Specifications
| Physical | |
| Size (HxWxD): | 44 mm x 23 mm x 10mm |
| Weight: | 23 g |
| Cable length: | 24 cm |
| Wire colors: | Black |
| Shell color: | black |
| Environmental | |
| Ambient working temperature: | 0 to 40 °C / 32 to 105°F |
| Storage temperature: | -20°C to 40°C / -5°F to 105°F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
