SHELLY
SH-SHELLYWALLBX1I

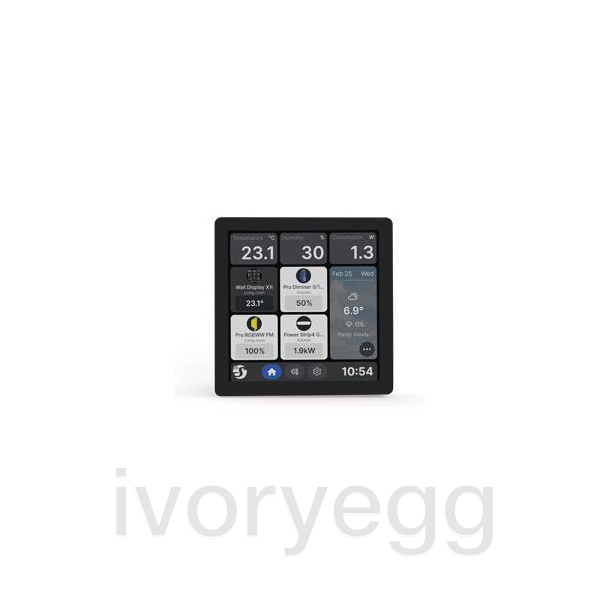

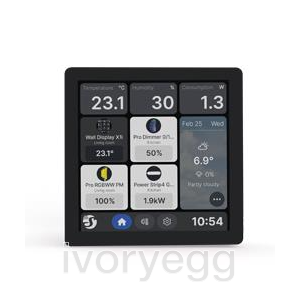

Shelly Wall Display X1i - Black
Product code:
SH-SHELLYWALLBX1I
Smart home control panel with a 4” color touchscreen and a quad-core processor. It features an interchangeable power base for single-circuit control via one output. Suitable for home and office use.
Description
Shelly Wall Display X1i (the Device) is a smart home control panel with a 4” color display and interchangeable power base. It comes with power base that provides switching functionality for one output load circuit.
Compatible devices:
- Shelly 2-Output Power Base for Wall Display (provides switching functionality for two load circuits)
Main features
- Touch-sensitive 4” color display
- Power base with integrated relay for light control
- Interchangeable power base that can be replaced with Shelly 2-Output Power Base for Wall Display (i-series).
- Easy navigation and customizable home screen
- Integrated 1 W speaker
- Integrated light sensor
- Power consumption monitoring of all devices in a room in your Shelly Smart Control account
Main applications
- Residential
- MDU (Multi Dwelling Units - apartments, condominiums, hotels, etc.)
- Light commercial (small office buildings, small retail/restaurant/gas station, etc.)
- Government/municipal
- University/college
Technical Details
Specification
Specifications
| Quantity | Value |
|---|---|
| Physical | |
| Size (HxWxD): | With power base: 86.5х86.5х35.7 mm / 3.40x3.40x1.40 inch Without power base: 86.5х86.5х11 mm / 3.40x3.40x0.43 inch |
| Weight: | With power base: 163 g / 5.75 oz Without power base: 113 g / 3.99 oz |
| Touch Screen: | 5-point capacitive |
| Screen resolution, px: | 720x720p |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.75 to 2.5 mm² / 18 to 14 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 inch |
| Mounting: | Wall box |
| Shell material: | Plastic, aluminum, glass |
| Shell color: | Display: Black, Silver 1-Output Power base: Blue (CMYK: C-95%; M-53%; Y-0%; K-0%) |
| Speaker: | 1 W |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 100-240 V~, 50/60Hz |
| Power consumption: | < 5 W |
| USB TYPE-C power supply: | 5V⎓, 1A |
| Output circuits ratings | |
| Max. switching voltage: | 240 ~ |
| Max. switching current: | 5 A |
| USB TYPE-C, voltage: | 5 V⎓ |
| USB TYPE-C, current: | 0.5 A |
| Sensors, meters | |
| Light sensor: | Yes |
| Microphone: | Yes |
| Proximity sensor: | Yes |
| Radio | |
| Wi-Fi | |
| Protocol: | Wi-Fi 6 Dual Band |
| RF band: | 2412 – 2472 MHz 5150 – 5850 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors |
| Bluetooth | |
| Protocol: | 5.0 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| Microcontroller unit | |
| CPU: | Rockchip RK3326-S Quad core Cortex-A35 1.5GHz |
| RAM: | 1 GB |
| Flash: | 8 GB |
| System: | Android 11 |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 2 URLs per hook |
| Scripting: | No |
| MQTT: | Yes |
