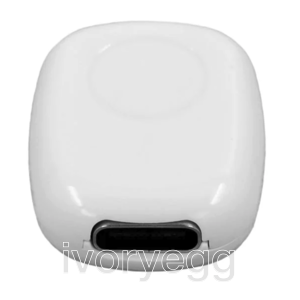

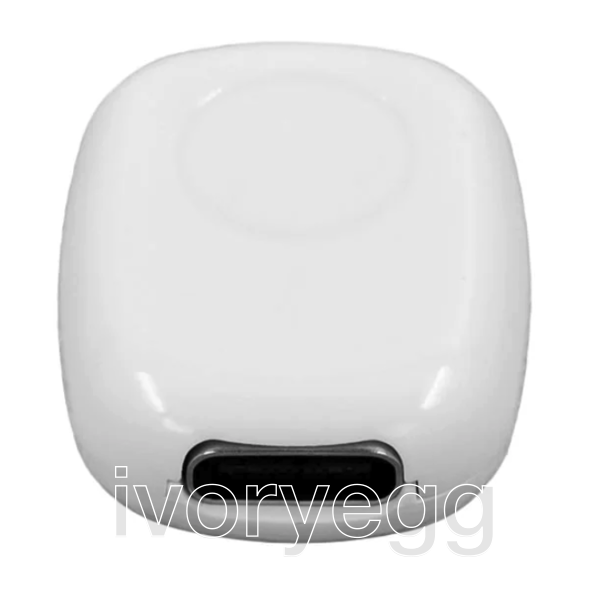

The Pill by Shelly
Product code:
SH-THEPILL
Compact USB-C powered Wi-Fi and Bluetooth device that connects to various sensors and low-voltage peripherals for monitoring and control of temperature, humidity, voltage, and digital I/O.
Description
The Pill by Shelly is a compact multi-purpose low-voltage Wi-Fi & Bluetooth device, powered by only 5V via USB-C. The small form factor allows it to fit conveniently into any space-constraint environment.
The device is ready to use for Temperature monitoring with Plug and play compatibility with external Temperature sensors (DS18B20) or Temperature & Humidity (DHT22). Additionally, supporting wide variety of digital or analog sensors and low-voltage actuators with external peripheral addons and configurable peripheral modes.
Main features
- Compact design
- USB-C powered (5V)
- Dual connectivity (WiFi & Bluetooth)
- Plug and play: Temperature monitoring (DS18B20/DHT22)
- Advanced peripheral modes - Digital Input/Output; Analog input (Voltage meter);
- External Peripheral Add-ons: SSR Dual-channel, Analog Voltage measurement (0-30V)
- Shelly Gen3 capabilities (Local actions, Schedules, Scripting, Virtual components)
- Bluetooth Gateway for Shelly BLU devices
- 3rd party integrations-ready (MQTT, WebSocket, HTTP)
Peripheral modes
- Temperature (DS18B20) - Supporting up to 5 x Temperature probes (DS18B20); + optional 2 Digital IO
- Temperature & Humidity - 1x Temperature & Humidity sensor DHT22 + optional 2 Digital IO
- Analog Input - Analog sensor input (voltmeter) + optional Digital IO. Measured Voltages: 0-2.5 V (default); external Add-on for 0-30V
- Digital Input/Output - configurable for up to 3x Inputs/Outputs ; Digital IO: 3.3 V Logic Levels; Digital input: Active Low (default).
- Solid State Relay Add-on - Peripheral Addon with 2x channels galvanic-isolated outputs (max 30 V / 300 mA) + optional Digitial IO
* Note: Digital I/O can be combined with all modes and setup independently as Input or Output
Technical Details
Specification
Specifications
| Quantity | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 26 x 19.95 x 8.5 mm / 1.02 x 0.79 x 0.34 inch |
| Weight: | 3 g / 0.11 oz |
| Shell material: | Plastic |
| Shell color: | White |
| Environmental | |
| Ambient working temperature: | -20 to 40 °C / -5 to 105 °F |
| Humidity: | 30 % - 70 % RH |
| Electrical | |
| Power supply: | 5 V⎓ (from USB Type-C port) |
| Power consumption: | < 1 W |
| Input circuits ratings | |
| Digital inputs triggering voltage: | Active LOW; Trigger low: < 0.83 V Trigger high: > 2.48 V |
| Digital inputs max. voltage | 3.3 V |
| Output circuits ratings | |
| Max. switching voltage: | 3.3 V (logic-level) |
| Max. switching current: | 20 mA |
| Sensors, meters | |
| Voltmeter (DC) |
|
| Voltmeter accuracy: | ±(2% + 5d) |
| Internal-temperature sensor: | No |
| External sensors supported: |
|
| Radio | |
| Wi-Fi | |
| Protocol: | 802.11 b/g/n |
| RF band: | 2401 - 2483 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
| Bluetooth | |
| Protocol: | BLE 4.2 |
| RF band: | 2402 - 2480 МHz |
| Max. RF power: | < 10 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors |
| Microcontroller unit | |
| CPU: | Shelly ESP32 C3 (ESP-Shelly-C38F) |
| Flash: | 8MB |
| Firmware capabilities | |
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| Encryption: | Yes |
| Other: | Supported Accessories:
|
