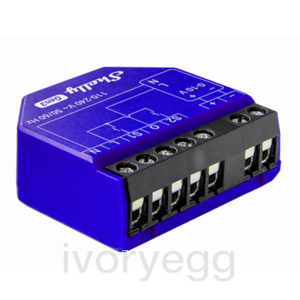

SHELLY SH-SHELLY-01DIM

Dimmer 0/1-10V PM Gen3

Product code: SH-SHELLY-01DIM

Smart dimming controller with power measurement. Provides support for 0-10V and 1-10V types of drivers.

Supports 0-10V and 1-10V types of drivers (lights, motors, valves, etc.)
Wi-Fi and Bluetooth-operated
Shelly Plus Add-On compatible: Supports connection with the sensor interface to measure different data (humidity, temperature, etc.)
One/dual button dimming mode (use with physical switches)
Customizable thresholds and offsets for temperature, humidity and light if used with Plus Add-on
Power measurement: Precise monitoring of energy consumption. Information about voltage (V), current (A) and consumption (W) is displayed.
Safety: Оver current/voltage/power protections
Supports “Night mode”: Automatically sets the lights' brightness at a low level during the night hours
Wi-Fi Range Extender & BLE Gateway
Equipped with a new processor & increased flash memory - ESP Shelly
No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant, or your preferred automation platform
Supports KNXnet / IP communication
