SHELLY
SH−SHELLY1−MG4

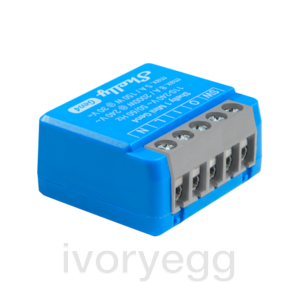

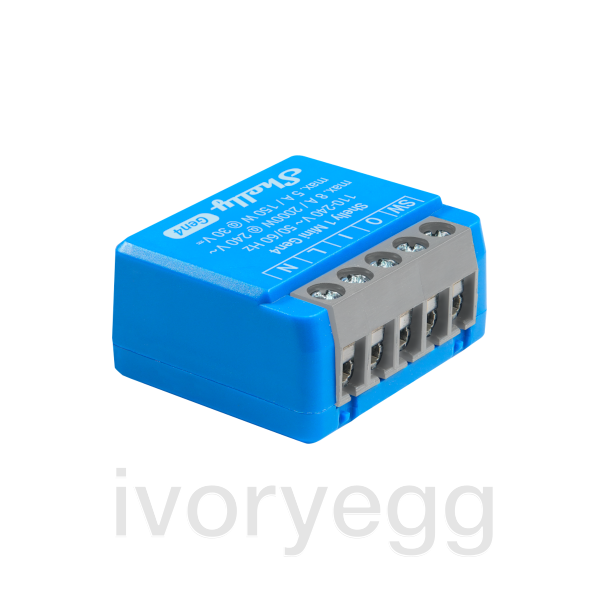

1 Mini Gen4 WiFi/Zigbee-operated 8A relay switch
Product code:
SH−SHELLY1−MG4
The smallest relay switch in the world for smart control. Automate your lights, garage door, irrigation system, or other small electrical appliances in less than 10 minutes and control them from anywhere. Small enough to fit behind any wall switch or socket, Shelly 1 Mini Gen4 can be retrofitted and is highly compatible with your existing smart ecosystem.
Description
- Dry contacts (potential-free) - option for contactor control
- New processor - ESP-Shelly-C68F chip with an increased memory of 8MB
- New - Multiprotocol connectivity: Choose from Bluetooth, WiFi or Zigbee
- New - Matter certified.
- New - Works with Apple Homekit: Control connected devices using the Apple Home app or Siri through Matter
- Improved durability of terminals
- Supports up to 8A at 240V AC and 5A at 30V DC
- WiFi/Zigbee extender & Bluetooth gateway
- No hub required! Easy control through the Shelly Smart Control app, most platforms and protocols, as well as voice assistants. Use it with Alexa, Home Assistant or your preferred automation system
- Supports scripting, webhooks, MQTT, WebSocket, HTTPS, UDP, TLS and custom certificates
Technical Details
Specification
POWER
- Power supply 110-240V ±10% 50/60Hz AC
- Max switching voltage AC 240V
- Max switching voltage DC 30V
- Max switching current AC 8A
- Max switching current DC 5A
- Max switching power AC 2000W
- Max switching power DC 150W
- Power consumption < 1.2W
- External protection 10A, tripping characteristic B or C 6kA interrupting rating Energy limiting class 3
FEATURES
- Clean contact relay Yes
- Power measurement No
- Voltage protection / Cutoff No
- Current protection / Cutoff No
- Max power protection / Cutoff No
- Internal-temperature sensor Yes
- Ambient temperature -20°C to 40°C / -5°F to 105°F
- Humidity 30% to 70% RH
- Schedules 20
- Webhooks (URL actions) 20 with 5 URLs per hook
- MQTT Yes
- UDP Yes
- Scripting Yes
CONNECTIVITY
- Wireless/WiFi Protocol 802.11 b/g/n/ax (2.4 GHz)
- WiFi Frequency 2412-2472 MHz
- Wi-Fi Range (depending on local construction) • up to 50m/160ft outdoors • up to 30m/100ft indoors
- Zigbee Protocol 802.15.4
- Zigbee Repeater Yes
- Zigbee RF Bands 2400-2483.5 MHz
- Zigbee Range (depending on local construction) • up to 300m outdoors • up to 100m indoors
- Bluetooth Protocol 4.2
- Bluetooth Range (depending on local construction) • up to 30m/100ft outdoors • up to 10m/33ft indoors
DIMENSIONS
- (H x W x L) 29 x 35 x 16 ±0.5 mm 1.11 x 1.35 x 0.63 ±0.02 in
