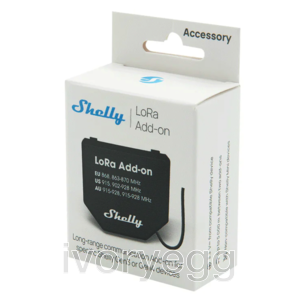

Shelly LoRa Add-on
Product code:
SHELLYLORAAO
Unlock up to 5 km of reliable communication with the Shelly LoRa Add-on. Designed for Shelly Gen3 and Gen4 devices, it redefines long-range connectivity, delivering secure performance in open spaces and dependable operation even in challenging environments.
Break barriers and extend control where other technologies can't reach. This compact add-on is perfect for automating city infrastructure, managing remote facilities, or optimizing precision agriculture. It supports custom scripts, giving you the flexibility to tailor functionality for the specific use case.
Description
Main features
- Communicate up to 5 km with ease, thanks to the external antenna.
- Seamlessly integrates with Shelly Gen3 and Gen4 devices for extended communication.
- Built to perform even in obstructed or hard-to-reach areas.
- Built-in AES-CCM encryption with support for unicast, multicast, and broadcast addressing via the Shelly Protocol.
- Supports EU868, US915, and BR915-928 regions, with AU915-928 support coming soon.
- Supports custom scripts to address specific use cases.
- Supports low power mode for EU868, enabling continuous communication without duty cycle limitations.
Technical Details
Specification
Specifications
| Quantity | Value |
|---|---|
| Physical | |
| Size (HxWxD): | 40x42x11 mm / 1.58x1.66x0.44 inch |
| Weight: | 10 g / 0.4 oz |
| Mounting: | Via the Shelly proprietary serial interface to connect to a Shelly compatible device |
| Shell material: | Plastic |
| Shell color: | Black |
| Environmental | |
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Max. altitude: | 2000 m / 6562 ft |
| Electrical | |
| Power supply: | 3.3 V (from compatible Shelly device) |
| Power consumption: | < 150 mW |
| Compatible devices: | Shelly Gen3 Devices:
|
| Range: | Up to 5 000 m / 16 400 ft |
