THEBEN
LUXA 103 S360-12 KNX DE

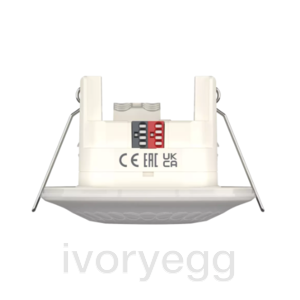

KNX Presence detector (PIR) for installation in suspended ceilings
Product code:
1039053
Description
- Presence detector (PIR) for ceiling installation in suspended ceilings indoor
- Round detection area 360° , Ø 12 m (113 m²) at 3 m mounting height
- For KNX bus system, 2 channels light and 2 channels presence for HVAC control
- 2 channels light with 1 light measurement
- Automatic lighting control with constant light control or switching mode
- Dimmable lighting in switching mode with and without daylight influence
- Integrated temperature sensor
- Day / night switching via telegram
- Stand-by functionality (orientation light)
- 3 logic channels (AND/OR/XOR).
Technical Details
Specification
Installation height: 2 - 4 m
Measuring range brightness: 5 - 1000 lx
Detection angle: 360°
Type of connection: KNX bus terminal
Installation type: Ceiling mounting
Light measurement: Mixed light measurement
Switch-on delay presence: 10 s - 30 min / inactive
Ambient temperature: -25°C ... 55°C
Detection range: 113 m² (ø 12 m | 360°)
Colour: White
Type of protection: IP 54 (when fitted)
KNX Secure: Yes
Properties
Properties
| Technology | KNX |
| Frame finish | White |
| Mounting | Flush |
| Input voltage | KNX Bus (29VDC) |
| HVAC support | Temp Sensing |
| Buscoupler | Included |
| IP rating | IP54 |
