THEBEN
6489210

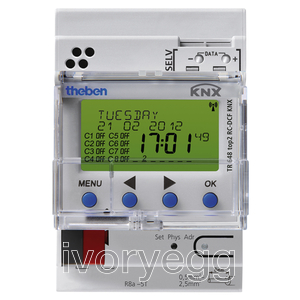

TR 648 top2 RC-DCF KNX Digital time switch
Product code:
6489210
Digital time switch with yearly and astronomical time program, Time synchronisation via connection of external DCF antennas which receive the time from a transmitter in Mainflingen, Germany
Description
Please confirm Reception of the DCF77 Time Signal is possible before ordering.
- DCF Time Signal 8 channels
- DuoFix spring terminals for 2 conductors each
- Text-oriented user guidance in display
- 800 memory locations
- Interface for OBELISK top2 memory card (PC programming)
- 8 year power reserve (lithium battery)
- ON-OFF switching times
- Pulse program
- Cycle program
- Extensive yearly clock functions
- Astronomical switching function (automatic calculation of sunrise and sunset times for the whole year)
- Switching preselection
- Permanent switching ON/OFF
- Count-down timer
- Integrated hour counter
- Holiday program
- 2 random programs
- Display backlight (can be turned off)
- PIN coding
- Automatic summer/winter time changeover
- Time and date synchronisation of other bus participants
Technical Details
Specification
- Operating Voltage: 110 - 240 VAC
- Stand By Power Consumption: 0.2W
- Bus Voltage: KNX Bus 21...30VDC
- Bus Current Consumption: 4mA
- Time accuracy: - = Less than 0.5 s/day (quartz) or DCF77/GPS
- Shortest switching times: 1 s
- Display: LCD
Properties
Properties
| Technology | KNX |
| Mounting | DIN Rail |
| Input voltage | 230VAC |
| IP rating | IP20 |
| Mounting Width | 3MW |
