THEBEN
P360-110
theRonda DALI UP WH Presence detector, white
Product code:
2080040
Passive infrared presence detector for ceiling mounting
Round detection area 360°, up to Ø 24 m
1 light channel DALI broadcast
Description
- Passive infrared presence detector for ceiling mounting
- Round detection area 360°, up to Ø 24 m
- 1 light channel DALI broadcast
- 1 push-button input
- Using of conventional push-buttons for maximum design freedom
- Switch or constant light control mode with stand-by function
- Dimmable lighting in switch mode with stand-by function
- Choice of fully or semi-automatic operation
- Adjustable brightness switching value
- Teach-in function via remote control or push-button

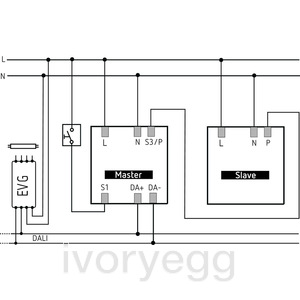

- Increased coverage by use of Client detectors.
- ( theRonda P360 Client UP WH, White) Part No 2080030
Technical Details
Specification
Detection area
| Mounting height (A) | Sitting (S) | Diagonally (T) | |
| 2 m | 20 m² | 5 m | 380 m² | 22 m | |
| 2.5 m | 28 m² | 6 m | 415 m² | 23 m | |
| 3 m | 38 m² | 7 m | 452 m² | 24 m | |
| 3.5 m | 38 m² | 7 m | 452 m² | 24 m | |
| 6 m | 452 m² | 24 m | ||
| 10 m | 491 m² | 25 m |
| Operating voltage | 110 – 230 V AC |
| Frequency | 50 – 60 Hz |
| Installation height | 2 – 10 m |
| Minimum height | > 1,7 m |
| Installation type | Ceiling installation |
| Colour | White |
| Switching output | DALI |
| Stand-by consumption | <0.4 W |
| Light measurement | Mixed light measurement |
| Setting range brightness | 10 – 3000 lx |
| Light switch-off delay | 10 s - 60 min |
| Stand-by time light | 0 s – 60 min / on |
| Stand-by brightness | 1 – 25 % |
| Lamps | Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs |
| Control output | 100 mA |
| Ouput light | DALI-interface according to IEC SN EN 62 386 for max. 50 DALI devices |
| Max. cable cross section | max. 2 x 2,5 mm² |
| Size of concealed housing | Ø 55 mm (NIS, PMI) |
| Detection range | 452 m² (ø 24 m | 360°) |
| Ambient temperature | -15°C ... 50°C |
| Type of protection | IP 54 (when fitted) |
Properties
Properties
| Technology | DALI |
