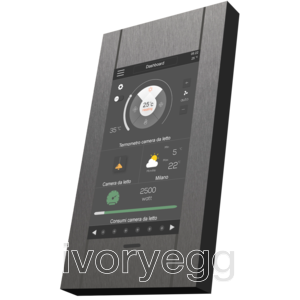

King Touch panel server 4.3" with unlimited clients + Temperature and humidity sensors - Steel Hamilton Fenix NTA - Black core Frame

Description

Direct KNX connection: Linux-based appliance with direct connection to the KNX bus (no need of separate IP-router).

Unlimited Clients: An unlimited number of clients (PCs, smartphones or tablets) can simultaneously connect to the server.

Unlimited KNX data-points: There aren't limitations on the number of KNX entities that can be controlled by our servers.

Electrical Switching: There are different kinds of switches available: on/off normally open, on/off normally close, on on pressure/off on release, on on pressure, value on pressure, etc.

Dimming Regulation: The lights can be easily dimmered through a simple interface of the client app.

RGB led: RGB leds can be controlled through KNX.

Blinds Control: Rollers and blinds contains KNX groups to move, to stop and to obtain a feedback of shades, blinds, etc.

Heating & Cooling: The chronothermostat is used to interact with a KNX thermostat and allows to set weekly timers to control the temperature. The desired temperature can be hourly and daily set.

Generic Timers: Switching can be temporised using two modes: the “Calendar” mode allows to set complex temporisations while the “Switch Schedule” mode allows to set six weekly temporisations.

Weather Forecasts: Weather forecast can be displayed into the client application.

Load Control: The loads control allows to monitor the electric energy consumption following disarm thresholds and rearm intervals.

Scenes management: Scene is a sequence of programmed actions such as the switching on of the lights in a room. This list of action can be predetermined by the user through the scene recording function.

Logics & Math: Logical operations (AND, OR, XOR) and mathematical functions based on values coming from KNX groups can be created using simple and intuitive interfaces.

Analogical Values: Visualize analogical values in the client interface (for example weather data such as wind speed, outdoor temperature, etc.) and to send them to a KNX group (for example to adjust threshold values).

IP Cameras: Visualization of IP cameras with MJPEG or RTSP video flow.

SMS Gateway: Service that allows to send SMS notifications when specific conditions predefined in the ThinKnx Configurator occur (no additional hardware required).

Generic Gateway: It is possible to perform actions depending on a command or a specific value sent by the KNX bus (or other integrated systems), for example it is useful to create temperature alarms.

Push Notifications: Management of technical alarms with push notification messages (iOS), email and automatic page change in the ThinKnx client interface.

Infrared Control: Integration of IR TRANS devices to control TVs, Blurays, Apple TV, etc. directly from ThinKnx client interface (no database required).

Reports until 20MB: It allows to collect data up to 20 MB from KNX plants (both locally and on the cloud), to generate reports and to continuously store KNX telegrams (logger modality)
