XANTECH
XT-HDBT-MX44-4K18G-KIT

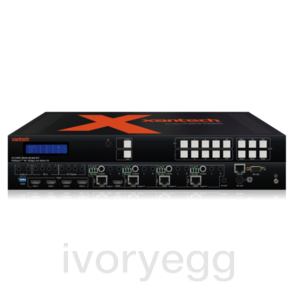

HDBaseT 4K 18Gbps 4x4 Matrix Kit
Product code:
XT-HDBT-MX44-4K18G-KIT
Description
Xantech XT-HDBT-MX44-4K18G-KITHDBaseT 4K 18Gbps 4x4 Matrix Kit with 4 HDBT Receivers - 70m (4K up to 40m)
The XT-HDBT-MX44-4K18G-KIT 4x4 HDBaseT™ Matrix kit offers unprecedented performance and value for the custom installation market. The XT-HDBT-MX44-4K18G-KIT is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix package utilizing CSC technology to deliver HDMI, Bi-directional IR, RS-232 and PoH (PoE) up to lengths of 70m over a single CAT cable. The Matrix also provides advanced features including simultaneous HDBaseT/HDMI on output 1, audio breakout with pre-amp variable line-level control and a web browser interface module for control and configuration of the matrix. The XT-HDBT-MX44-4K18G-KIT is supplied with 4x XT-HDBT-EX70-4K18G-RX receivers.
Technical Details
Specification
- Advanced HDBaseT technology offering uncompressed video and audio with zero latency
- Advanced Color Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR
- Features 4x HDMI inputs which can be independently routed to 4x HDBaseT outputs
- Output 1 features simultaneous HDMI and HDBaseT output
- Supports 4K 60Hz 4:4:4 UHD video up to 40m
- Extends HDMI 1080p video up to 70m
- HDMI re-clocking on the XT-HDBT-EX70-4K18G-RX HDBaseT Receiver to help solve HDMI HDCP, compatibility
- and handshaking issues
- Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
- Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus, DTS:X, DTSHD Master Audio transmission
- HDMI audio breakout to associated analog L/R audio outputs with pre-amp line level control
- Analog audio input can be embedded onto any HDMI input
- Web interface module for control and configuration of Matrix
- Supports bi-directional IR and RS-232 on all HDBaseT outputs
- Control via front panel, IR, RS-232, and TCP/IP
- Supports PoH (Power over HDBaseT) to power compatible HDBaseT receivers
- 3rd party drivers available for all major home control brands
- 1U design for 19” rack mount integration - mounting kit included
- Advanced EDID management
- HDCP 2.2 compliant
