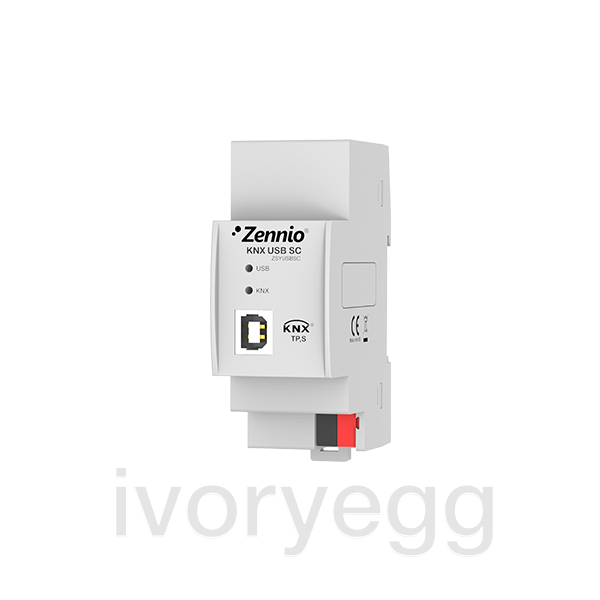

ZENNIO
ZSYUSBSC
KNX-USB Interface
Product code:
ZSYUSBSC
USB Interface for programming via ETS. KNX and USB Status LED. ETS detects the KNX-USB Interface after connecting to the computer. It allows monitoring the KNX bus with ETS.
Description
- DIN rail unit assembly (EN 50022), with snap fit clamp.
- Size 90 x 36 x 71mm.
- Long messages up to 228 byte length.
- USB 2.0.
- Low current consumption.
- Easy usage.
- No external power supply required.
- KNX and USB Status LED.
- KNX BCU integrated.
- CE directives compliant.
Technical Details
Specification
General System Specifications
- KNX Power Supply: 29V DC SELV
- Current Consumption: Max. 10mA
- USB LED Status: Indicates the USB connection status (yellow, connection established)
- KNX LED Status: Indicates traffic between the PC and the KNX bus
- OperatingTemperature from 0 ¡C to +45 ¡C
Properties
Properties
| Technology | KNX |
| Mounting | DIN Rail |
| IP rating | IP20 |
| Mounting Width | 2MW |
| Operating Voltage | KNX Bus (29VDC) |
